Nickle Plated Brass Cable Gland |
|
|
| Product name：Nickle Plated Brass Cable Gland |
| Item：SFBG |
| Details： |
Brass cable glands
|

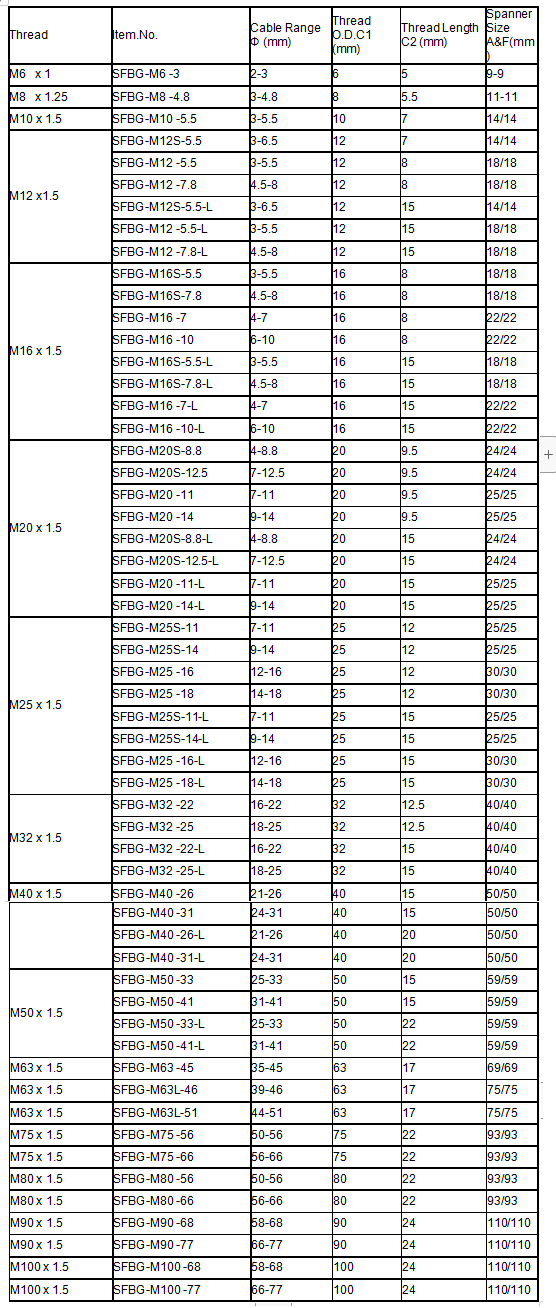

Detailed Specification of Metal Cable Gland
|
|
Thread:
|
Metric, PG, G(PF), and NPT thread
|
|
Material:
|
Brass with nickel plated for A,C,F parts; Nylon PA66 for E part,
EPDM rubber or Silicon rubber for B,D parts
|
|
Protection degree:
|
IP68
|
|
Working temperature:
|
-40℃ to 100℃
|
|
Features:
|
Different cable range for different cable diameter,
Different thread length for different junction box
|
|
Thread
|
Item.No.
|
Cable Range Ф (mm)
|
Thread O.D.C1
(mm)
|
Thread Length
C2 (mm)
|
Spanner Size
A&F(mm)
|
|
NPT 1/4
|
SFBG-NPT 1/4 -5.5
|
3-5.5
|
13.1
|
8
|
18
|
|
SFBG-NPT 1/4 -7.8
|
4.5-8
|
13.1
|
8
|
18
|
|
NPT 3/8
|
SFBG-NPT 3/8-7
|
4-7
|
16.6
|
9
|
22
|
|
SFBG-NPT 3/8-10
|
6-10
|
16.6
|
9
|
22
|
|
NPT 1/2
|
SFBG-NPT 1/2-8.8
|
4-8.8
|
20.9
|
9.5
|
24
|
|
SFBG-NPT 1/2-12.5
|
7-12.5
|
20.9
|
9.5
|
24
|
|
SFBG-NPT 1/2-11
|
7-11
|
20.9
|
9.5
|
25
|
|
SFBG-NPT 1/2-14
|
9-14
|
20.9
|
9.5
|
25
|
|
NPT 3/4
|
SFBG-NPT 3/4-16
|
12-16
|
26.4
|
12
|
30
|
|
SFBG-NPT 3/4-18
|
14-18
|
26.4
|
12
|
30
|
|
NPT 1
|
SFBG-NPT 1-22
|
16-22
|
33.2
|
12.5
|
40
|
|
SFBG-NPT 1-25
|
18-25
|
33.2
|
12.5
|
40
|
|
NPT 1 1/4
|
SFBG-NPT 1 1/4-26
|
21-26
|
41.9
|
15
|
50
|
|
SFBG-NPT 1 1/4-31
|
24-31
|
41.9
|
15
|
50
|
|
NPT 1 1/2
|
SFBG-NPT 1 1/2-33
|
25-33
|
48
|
15
|
59
|
|
SFBG-NPT 1 1/2-41
|
31-41
|
48
|
15
|
59
|
|
NPT 2
|
SFBG-NPT 2-45
|
35-45
|
60
|
17
|
69
|
|
 |
